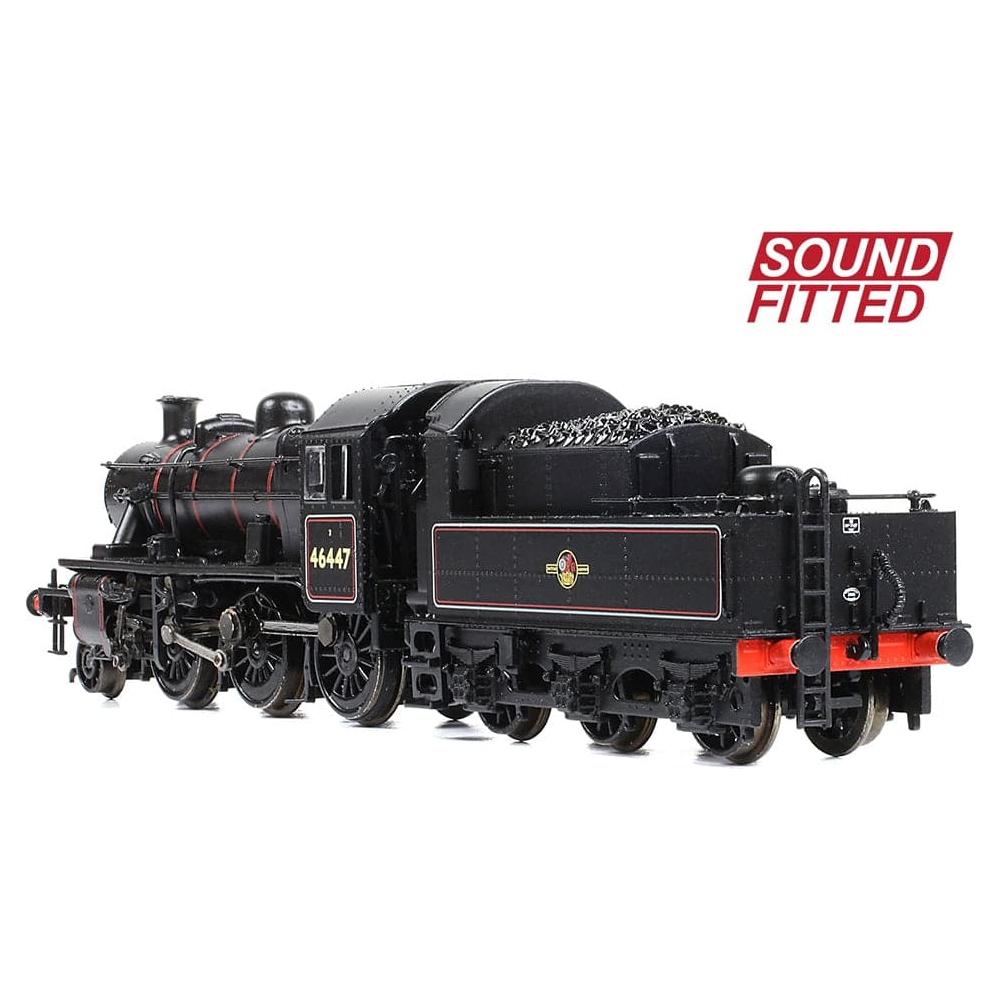

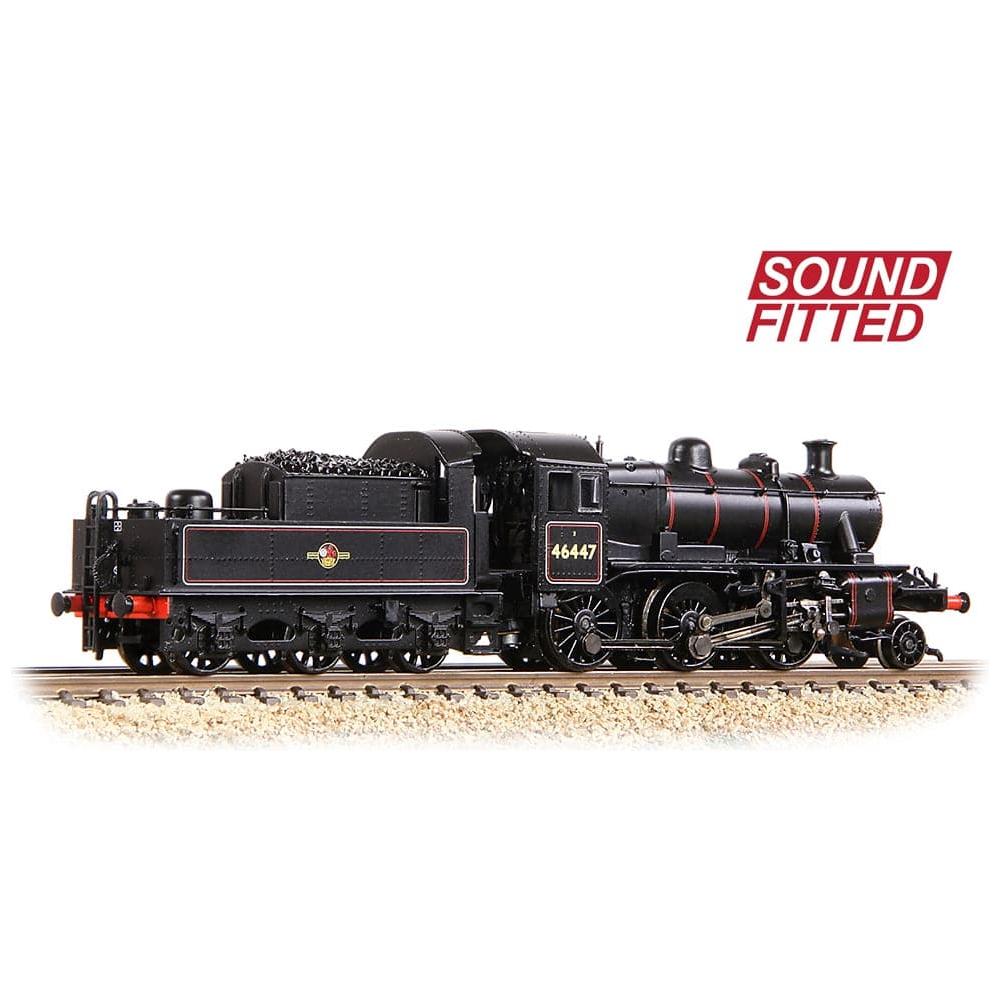

GRAHAM FARISH N Ivatt 2MT 46447 BR Lined Black (Late Crest) DCC Sound Fitted

GRAHAM FARISH N IVATT 2MT 46447 BR LINED BLACK (LATE CREST) SOUND FITTED

The popular LMS Ivatt 2MT returns to the Graham Farish N scale range following upgrades to include the Next18 DCC decoder interface and a pre-fitted speaker. Both upgrades are used to their full potential in this SOUND FITTED model which depicts preserved locomotive No. 46447 in BR Lined Black livery with Late Crest.

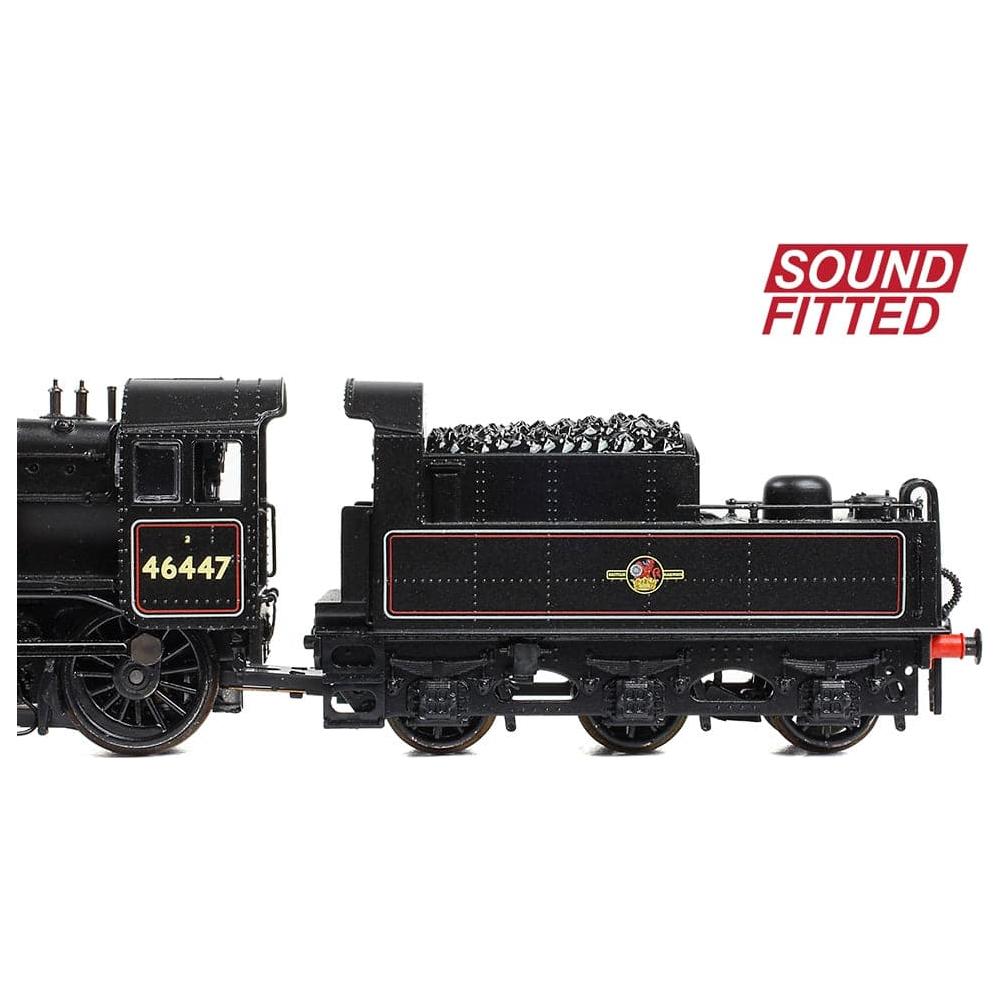

This Award Winning model certainly packs a punch when it comes to the detail, with separate metal handrails found throughout the locomotive and tender, lubricators and sand boxes along the running plate and separate pipework running from below the cab to the top feed on the boiler. The turned brass safety valves and whistle contrast beautifully with the firebox on which they are mounted, whilst inside the cab, the moulded back head detail has been decorated to pick out the individual gauges and controls. A hinged tender fall-plate provides the finishing touch to the highly impressive cab of this model.

When it comes to performance it’s hard not to marvel as you watch the Walschaerts valve gear in motion. The powerful coreless motor provides drive to the centre pair of driving wheels, whilst all six driving wheels are fitted with separate metal bearings and a pair of traction tyres are fitted to the rear driving wheels to aid traction. Electrical pick-up comes via all six driving wheels and all six tender wheels, with a semi-permanent loco-tender coupling system to ensure the two stay firmly coupled at all times. With SOUND FITTED, you can start enjoying authentic sound effects as soon as you place this model on your layout – whether you operate using DCC or Analogue control!

Additional traction tyres are available separately (item No. 379-423), along with the ModelMaker N Scale Loco Crankpin Box Spanner (item No. MM027) – an essential part of any N scale tool kit.

MODEL FEATURES:

• Graham Farish N Scale
• Era 5
• Locomotive is now Preserved
• Pristine BR Lined Black (Late Crest) livery
• Running No. 46447
• Accessory Pack
• NEM Coupling Pockets
• Powerful Coreless Motor
• Loco-drive Mechanism
• Tender Pick-ups
• Speaker Fitted
• SOUND FITTED - Fitted with a Zimo MS590N18 Sound Decoder – See below for the function list
• Length 112mm

SOUNDS

F1 - Sound On / Sound Off

F2 - Brake (Non-Latching)

F3 - Cylinder Drain Cocks

F4 - Single Whistle (Speed Related)

F5 - Reverser

F6 - Shovelling Coal

F7 - Injectors

F8 - Blower

F9 - Flange Squeal (Speed Related)

F10 - Safety Valve

F11 - Handbrake (locomotive will not move with the handbrake applied)

F12 - Water Tank Filling

F13 - Coupling Clank

F14 - Light Engine Mode

F15 - Fade All Sounds

F16 - Guard’s Whistle

F17 - Automatic Wagon Buffering

F18 - Unfitted Freight Mode

F19 - Pinned Brakes (F18 must be On)

F20 - Detonators

F21 - Short ‘Toot Toot’ Whistle

F22 - Long Duration Whistle

F23 - Short Duration Whistle

F24 - ‘Clear from the Guard’

F25 - 'Going under Charlie’

F26* - Guard to Driver Instructions

F27 - Volume Down

F28 - Volume Up

* A selection of different instructions can be selected via CV changes

Analogue Users: Normal-load running sounds, acceleration steam chuff sounds and any other automatic and randomised sounds can be enjoyed when using this model on analogue control (DC) straight from the box!

IVATT 2MT HISTORY

Designed by H. G. Ivatt for the London, Midland & Scottish Railway (LMS), 128 of these Class 2 Moguls were built for light freight and passenger duties. With construction commencing in 1946, just twenty examples were built by the LMS and the remaining 108 were outshopped by British Railways following Nationalisation in 1948. The construction programme was completed in 1952 and these Mixed Traffic locomotives would go on to operate on all the BR regions, with the exception of the Southern. Light axle loadings allowed the Ivatt 2MTs to be used on most routes including branch lines, where their almost enclosed cabs made them ideal for working tender first when no turning facilities existed. The design provided the basis for the BR Standard Class 2MT 2-6-0, and the two are very similar in appearance, with the Standard version having only a modified cab and tender profile to allow unrestricted route availability across the British network.

With BR progressively closing more and more branch lines, and rationalising others – often employing new diesel multiple units to provide a more economical passenger service – duties for small locomotives like the Ivatt 2MTs began to disappear and the decline of the class began in 1961 when the first example was withdrawn. The Mogul’s versatility and its relatively modern design however ensured that many examples were still in traffic until the mid-1960s, but by 1967 all had been withdrawn. Thankfully, seven Ivatt 2MT have been preserved and the type is an ideal source of motive power for many of the trains running on heritage railways today.
