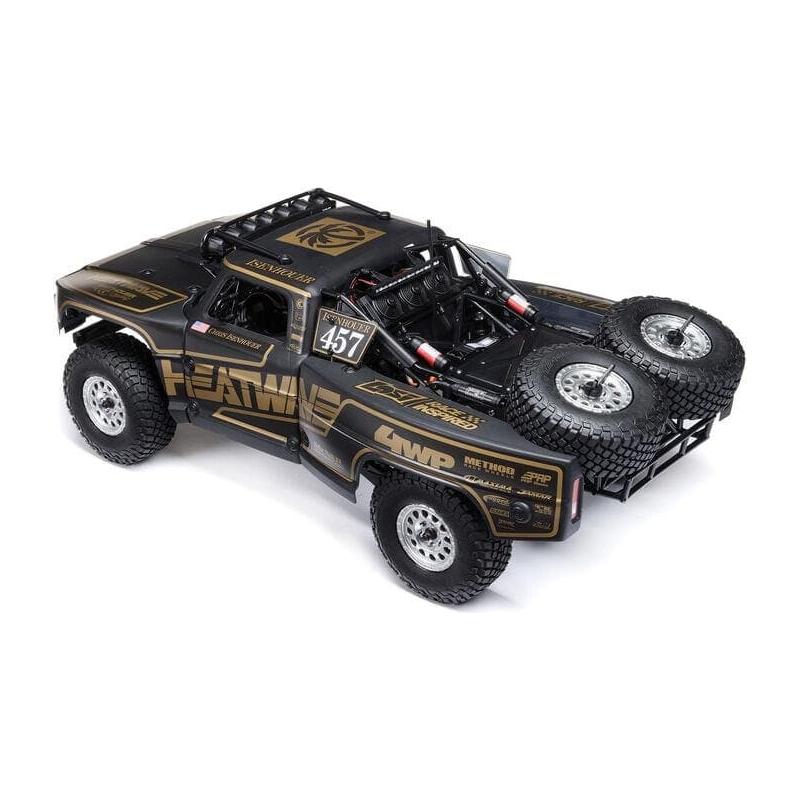

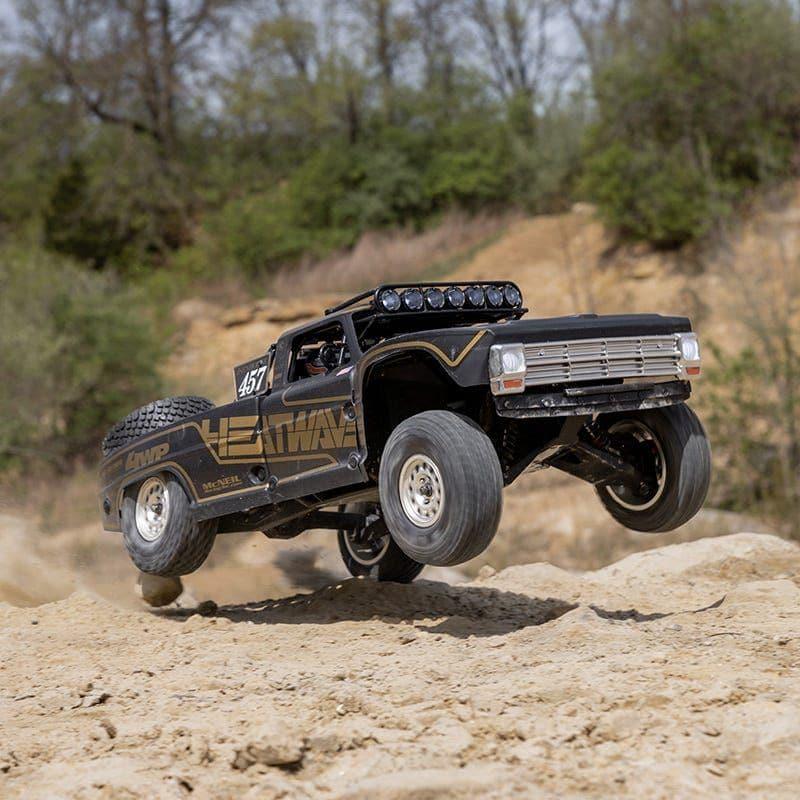

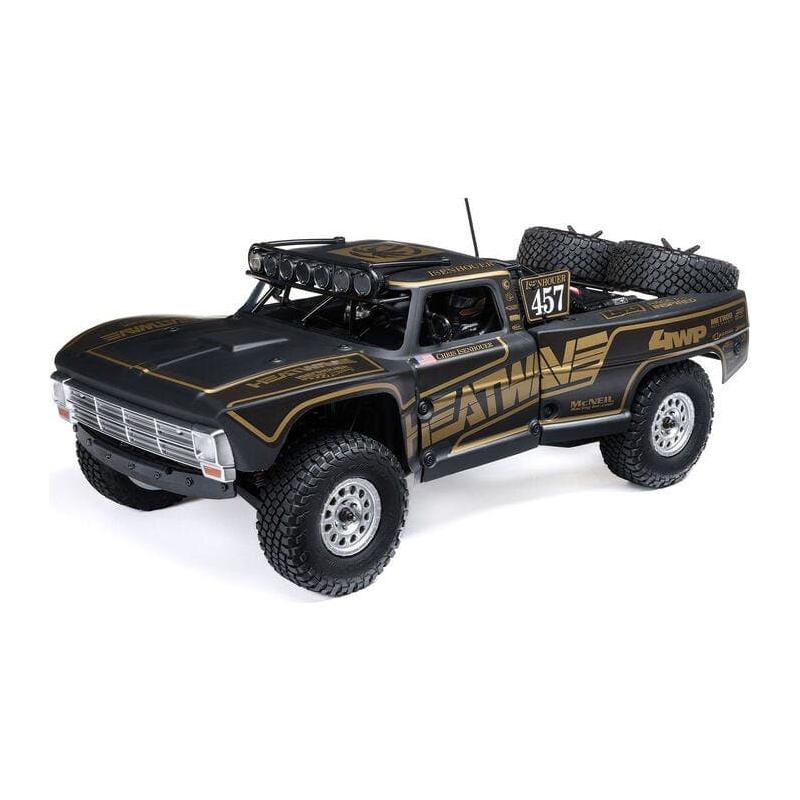

LOSI BAJA REY 2.0 1/10 DESERT TRUCK RTR, HEATWAVE SCHEME
The 1/10 scale Losi Baja Rey 4WD desert truck remains one of a kind, the only RC vehicle platform of its size with a true-scale suspension and chassis setup. The closer you look, the more details you find. When you see it in action, it’s easy to imagine living out your own wildest desert racing dreams.
Losi first released the Baja Rey in 2016. It quickly earned raves for incredible handling, speed, and overall performance. A new Baja Rey body style was introduced a few years later, but the platform itself proved so successful that it was unchanged — until now. For 2023, the Baja Rey not only gets another body update but also significant design improvements underneath. The Baja Rey 2.0 is an even better Baja beast, performing like a champion on all types of desert terrain from trails to sand washes.
Like the previous version, the foundation of the Baja Rey 2.0 remains its strong 3mm aluminium chassis plate with a 2.5mm upper deck. Whether you’re hitting the whoops, getting huge air, or just running wide open, the chassis keeps asking for more. From there, the platform now goes to the next level with new front gearbox and rear axle designs, improved upper front arms and 4-link bars, an additional dampening shock, and more. Together, the changes mean easier maintenance, more tuning ability, and even greater strength and durability in critical areas.
As always, Losi has worked closely with Baja’s best brands to bring you the most-scale RC desert truck possible. Take the new, officially licensed 2023 Ford F-150 Raptor R body, for example. The Method Ford Raptor Baja Rey 2.0 captures the full-size truck’s aggressive styling with moulded details that include the front grille, hood vent, fire extinguishers, driver helmets, interior, and more. The officially licensed BFGoodrich KR3 tires are mounted on officially licensed Method 101 wheels. And the dual spare tires are fully functional!
With LED lighting that includes a seven-light pod system, Raptor grille lights, and a rear red LED light strip, the Losi Method Ford Raptor Baja Rey 2.0 wants to keep playing even after the desert sunsets. You can get started almost immediately, because it’s ready-to-run with a feature-packed Spektrum Smart DX3 radio system and brushless power system that can handle 2S or 3S LiPo batteries (not included) — for the power to fly across the desert at speeds of up to 80+ km/h!
OFFICIALLY LICENSED FORD RAPTOR R BODY
Losi works with Baja’s best brands to bring you the most-scale RC desert trucks possible. The Method Ford Raptor Baja Rey 2.0 captures the new 2023 Ford F-150 Raptor R’s aggressive body styling in the front grille, hood vent, fire extinguishers, driver helmets, jack, mirrors, interior, and other moulded details.
OFFICIALLY LICENSED METHOD WHEELS
Light, fast, and strong, the Method 101 Race Wheels defined the Method brand. The Losi Method Ford Raptor Baja Rey 2.0 desert truck’s officially licensed wheels are designed after this legendary beadlock wheel that started it all.
OFFICIALLY LICENSED BFGOODRICH TIRES
Like the original BFGoodrich tires that were tested and proven by race-winning drivers in the deserts of Baja California, Mexico, and southwestern USA, these officially licensed tires have the same aggressive KR3 tread pattern and are ready for anything that the desert can throw at them.

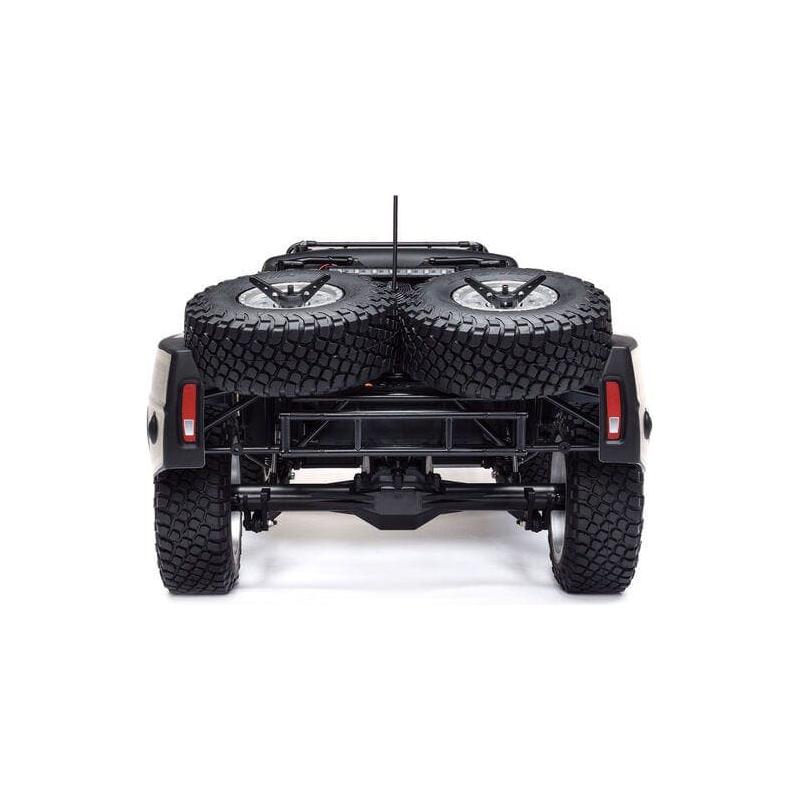

FULLY FUNCTIONAL DUAL SPARE TIRES

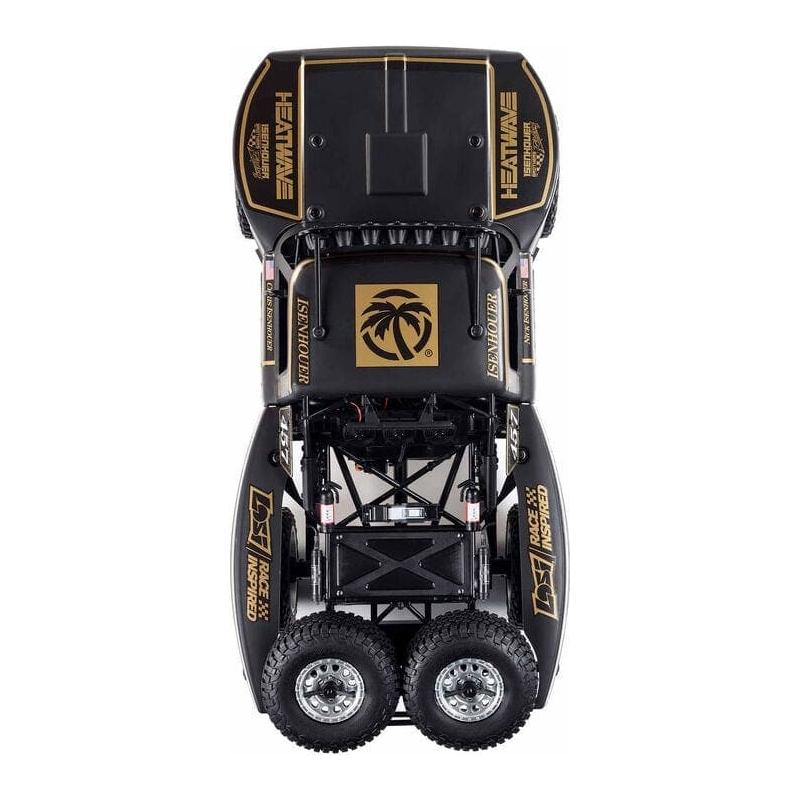

These dual spare tires not only complete the desert truck look but are also fully functional. They’re ready in case you ever need them after running through extreme conditions.

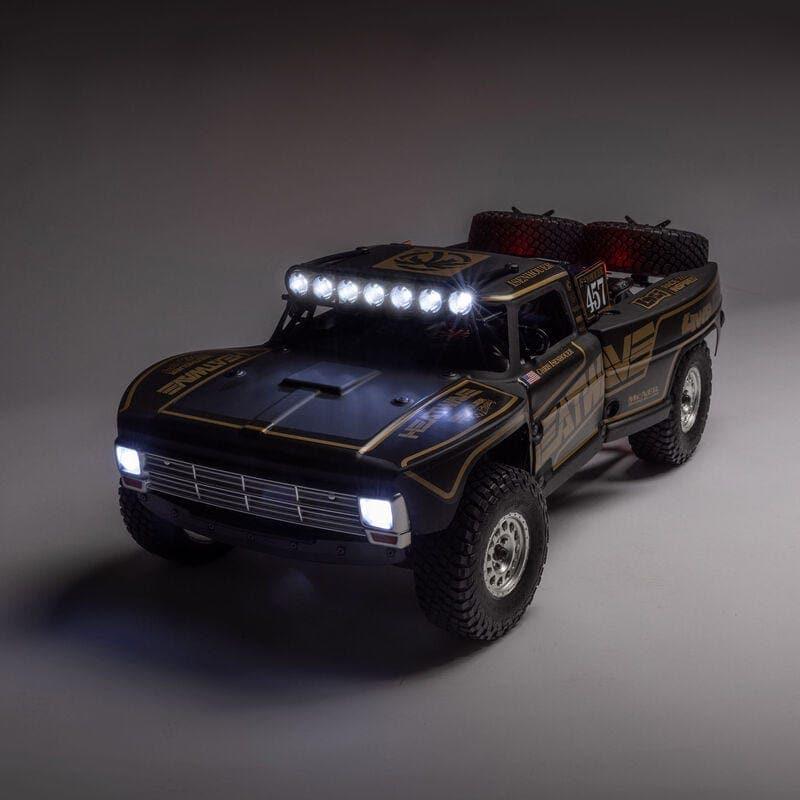

FUNCTIONAL LED LIGHT BARS

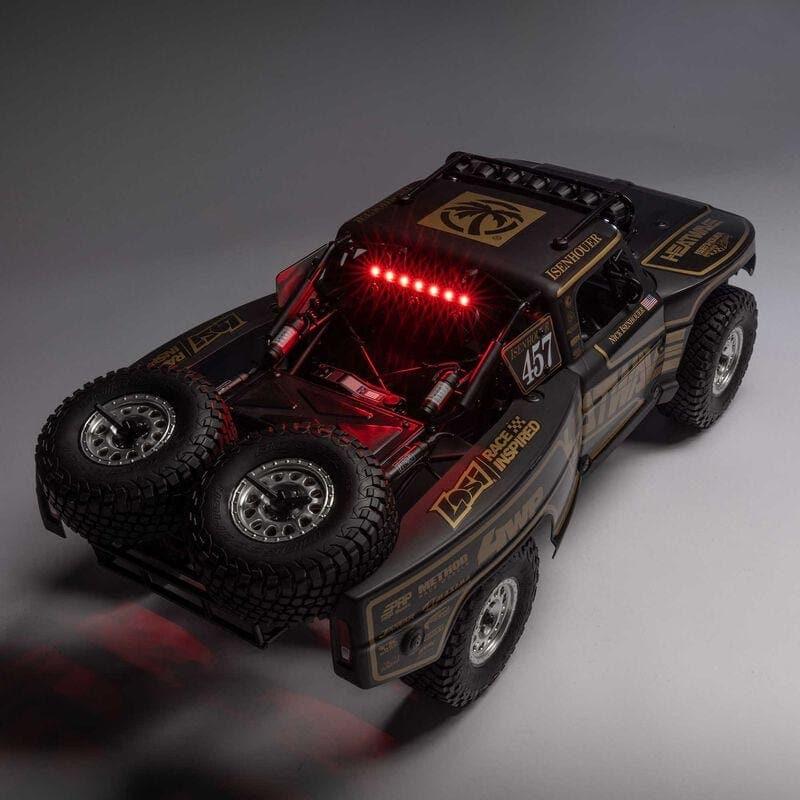

The Method Ford Raptor Baja Rey 2.0 is ready to play even after the desert sunsets, thanks to its realistic and functional lighting system. It features a seven-light pod system, Raptor grille lights, and a rear red LED light strip.
NEW FRONT GEAR BOX DESIGN
The Baja Rey 2.0 platform improves on the previous version with a new front gearbox design that makes maintenance and tuning much easier. The front fluid-filled differential can now be taken out without removing the front suspension.
NEW REAR AXLE DESIGN
The new Baja Rey 2.0 rear axle uses the same differential as the front, permitting dogbones and stub axles to be used that allow rear toe tuning. Zero-degree toe is installed. Three-degree optional rear toe blocks that increase traction are also included.
NEW UPPER 4-LINK BARS
These upper 4-link bars on the improved Baja Rey 2.0 platform are stronger than those of the previous version, adding more durability to the pivot ball area.
NEW UPPER FRONT ARMS
The upper front arms of the Baja Rey 2.0 have been completely redesigned. They now accept a secondary dampening shock and are also strengthened in critical areas for greater durability.
NEW SERVO SAVER
The new steering servo saver of the Baja Rey 2.0 not only increases durability and servo protection but also improves the consistency of steering performance.

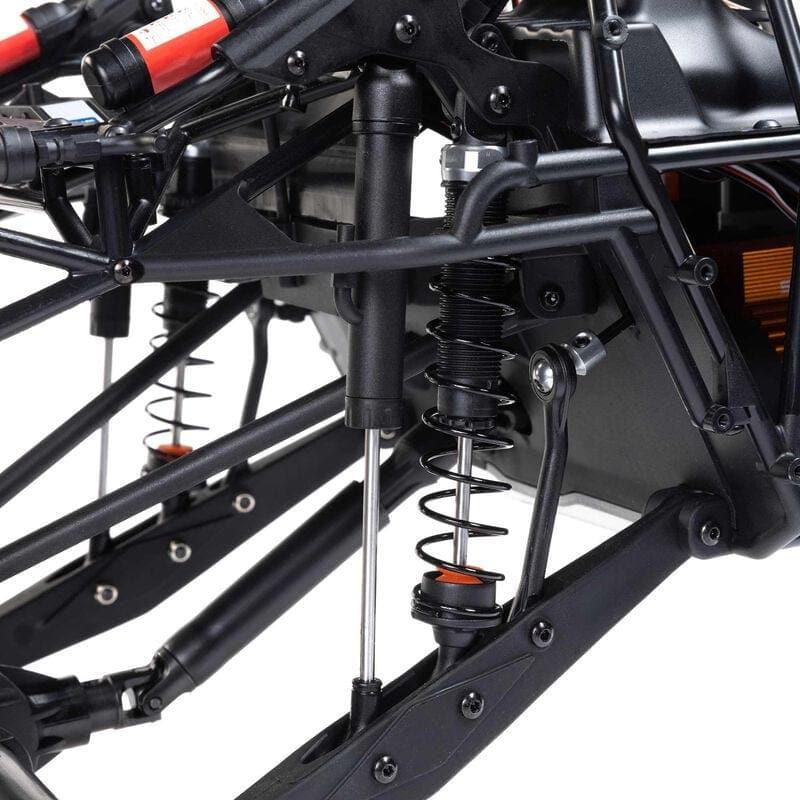

COIL-OVER SHOCKS WITH NEW ADDITIONAL DAMPENING SHOCK
Long travel shocks soak up the energy from big bumps and jumps, while external bump stops provide plush landings on the hardest surfaces. Threaded shock bodies with adjustment collars let you fine-tune the pre-load setting of the coil-over springs. New to the Baja Rey 2.0 is an additional dampening shock, for improved handling and looks that match the real desert racing trucks.

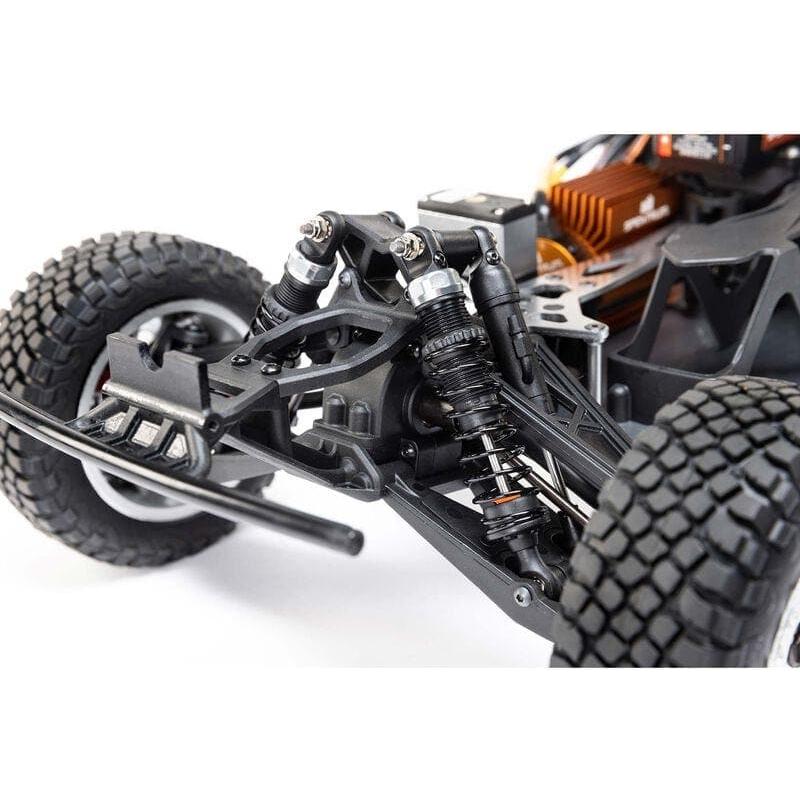

LONG TRAVEL SUSPENSION WITH SWAY BARS
The scale-independent A-arm front suspension and solid 4-link rear suspension allow the Baja Rey 2.0 to soak up massive whoops and bumps with the same realistic handling and movement as a full-scale desert truck. You get better control and a more locked-in feel regardless of the terrain.
FULL ROLL CAGE

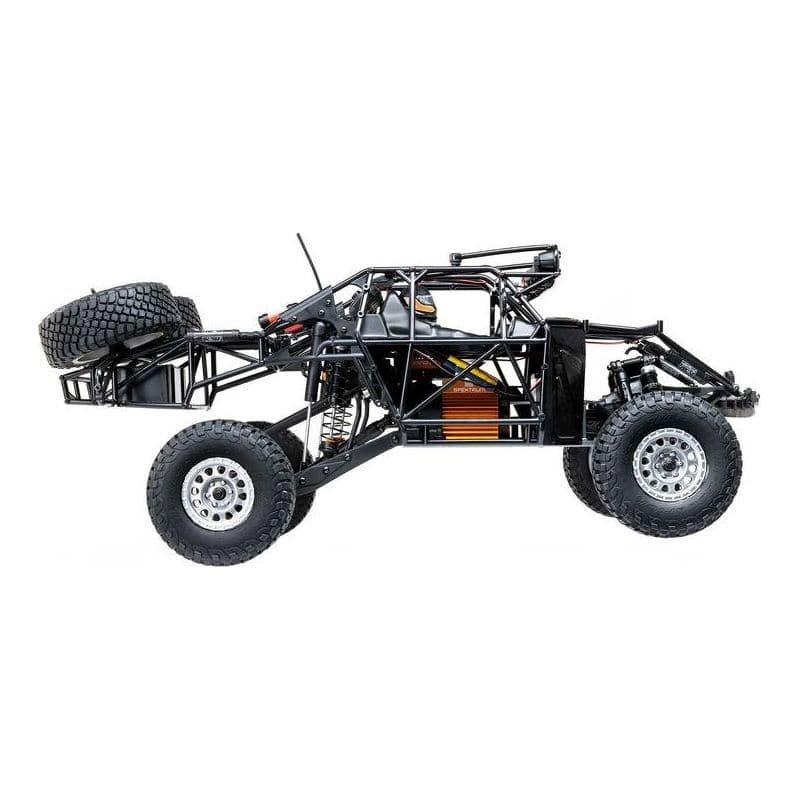

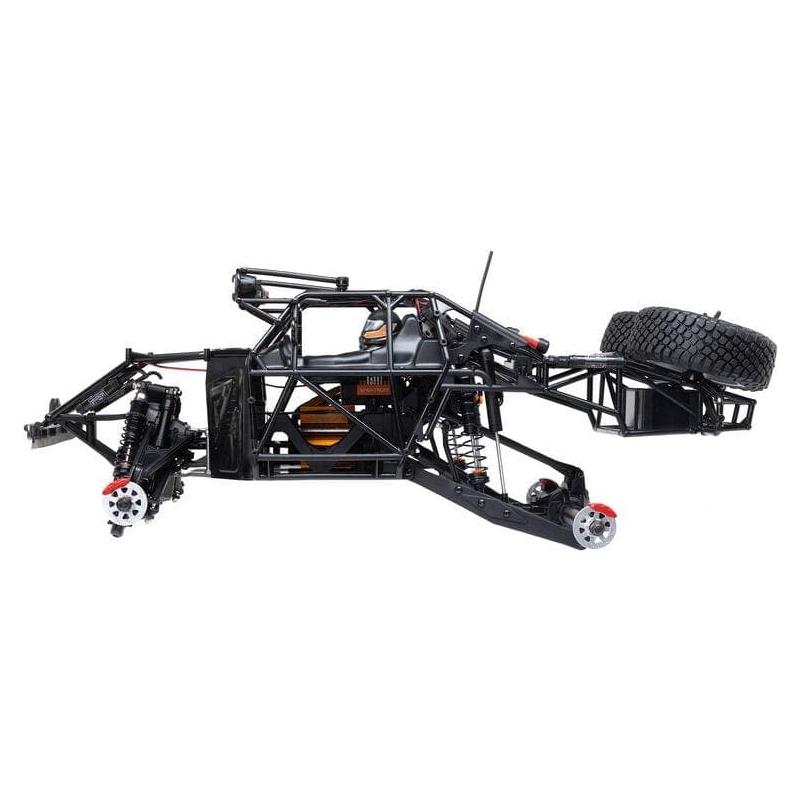

When its body panels come off, the Method Ford Raptor Baja Rey 2.0 still impresses with its race-inspired, moulded full roll cage.

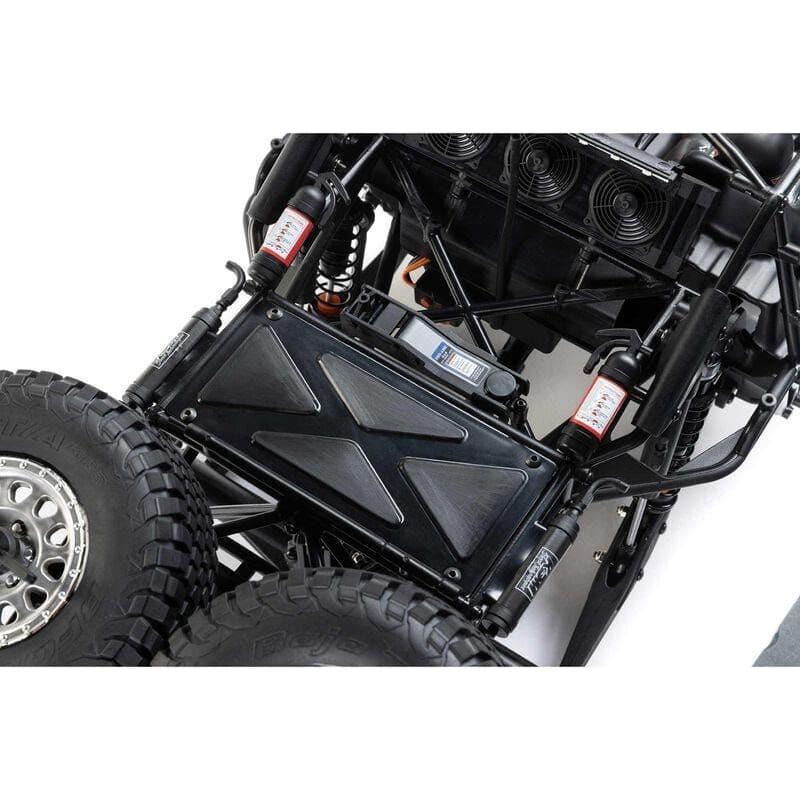

EASY-ACCESS MOTOR & BATTERY
Losi doesn’t make you choose between convenience and scale detail. In addition to scale realism, the Baja Rey 2.0 has a rear-loading battery and bottom-loaded motor for easy maintenance and battery swaps.
ALUMINUM CHASSIS

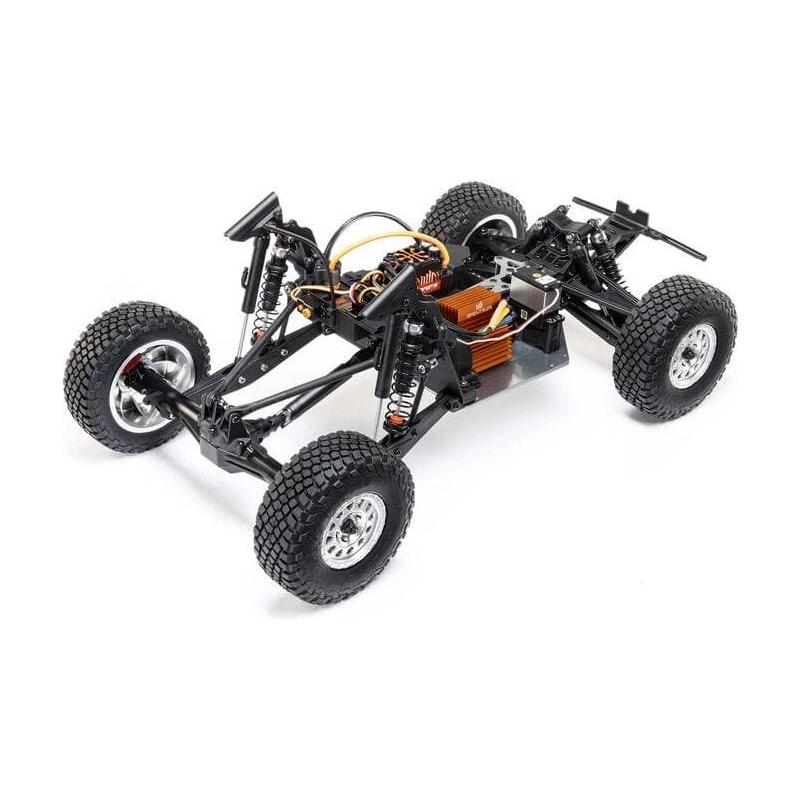

The foundation of the Baja Rey consists of a 3mm aluminium chassis plate with a 2.5mm upper deck. Whether you’re hitting the whoops, getting huge air, or just running wide open, the chassis keeps asking for more!
4-WHEEL DRIVE
Just like modern desert trucks, the Baja Rey 2.0 features a 4-wheel drive for the best traction over all of the different terrain types that the desert can throw at you.
SEALED METAL GEAR TRANSMISSION & DIFFERENTIALS
The single-speed transmission, as well as the front and centre diffs, are sealed against the elements and engineered to handle the abuse of a high-output brushless motor and punishing terrain. MOD 1 gears further increase the durability of this desert beast. The adjustability of three diffs allows drivers to set their Baja Rey 2.0 to handle any track conditions.
UPDATED LARGER PINION BEARINGS
The Baja Rey 2.0 platform’s gearboxes have been improved with larger 5x11 front bearings and 5x13 rear bearings to better support the pinions.
AVC TECHNOLOGY
When you're ready to send it, don't hold back! The receiver's built-in AVC (Active Vehicle Control) system provides automatic traction control with hundreds of tiny throttle and steering adjustments per second. More motor power goes toward ballistic speed instead of just flinging dirt. The DX3 transmitter’s AVC adjustment knob lets you decide how much traction control the system provides. You can even turn it off.
SMART TECHNOLOGY
Install a Spektrum Smart battery in your Baja Rey 2.0 and the DX3 Smart transmitter will indicate its power level as you race. Add optional Spektrum Smart accessories to see real-time telemetry data on your smartphone or on transmitters with built-in displays.
SPEKTRUM DX3 RADIO SYSTEM
The Spektrum DX3 radio’s advanced features include a 3-position throttle limiting switch that lets you select from 50%, 75%, or 100% power availability. When you add the BT2000 Bluetooth Module (sold separately) and download the free Spektrum Dashboard app, you can use its Smart ESC compatibility to receive real-time telemetry data, set up warning alarms, and enjoy more programming options.
WATERPROOF BRUSHLESS SYSTEM
The Baja Rey 2.0 comes equipped with a Spektrum 3800Kv brushless motor and a waterproof 130A ESC. This potent combination can handle 2S or 3S LiPo batteries (sold separately) and give you the power to hurtle across the desert at speeds of up to 80+ km/h.
SPEKTRUM S614S SERVO
The included Spektrum S614S servo has internal metal gears for extreme durability. Its 15kg of torque lets you maneuver through demanding desert terrain with confidence.
- Officially licensed body, wheels, and tyres
- Brushless powered for speeds up to 80+ km/h
- Functional dual spare tyres and LED light bars
- Long travel suspension for real desert truck performance
- New front gearbox, rear axle, upper front arm, and 4-link bar designs
- 3mm aluminium chassis plate with 2.5mm upper deck
- Long-travel shocks with new additional dampening shock
- Sealed metal gear transmission and differentials
- Easy-access motor and battery
- Full roll cage
- Spektrum DX3 radio with AVC and Smart technology
- Completion Level
- Ready-to-Run
- Scale
- 1/10
- Length
- 24.9 in (631.3mm)
- Width
- 17.9 in (454mm)
- Recommended Environment
- All-Terrain
- Height
- 7.9 in (200mm)
- Is Assembly Required
- No
- Experience Level
- Beginner
- Ground Clearance
- 1.6 in (41mm)
- Wheelbase
- 14.6 in (372mm)
- Ball Bearings
- Full
- Chassis
- 3mm Plate, 6061-T6 Aluminum
- Suspension
- Independent/Solid Axle
- Shock Type
- 0.4 in (10mm)/0.3 in (8mm), Composite, Oil Filled
- Body
- Polycarbonate, Screened
- Drivetrain
- 4WD
- Differential
- Bevel Gear/Sealed
- Wheel Type
- Method 101
- Wheel Diameter
- 2.2 in (55.9mm)/3.0 in (76.2mm)
- Wheel Width
- 1.6 in (41.5mm)
- Tyre Compound
- 45A (Being confirmed 12/9/22)
- Tyre Tread
- BFGoodrich KR3
- Tyre Diameter
- 4.8 in (121mm)
- Brakes
- Electronic via ESC/Motor
- Motor Type
- Non-Sensored Brushless
- Motor/Engine Size
- 3660/3800Kv
- Pinion
- 13T (Being confirmed 12/9/22)
- Spur Gear
- 36T
- Gear Pitch
- 1.0 MOD
- Internal Gear Ratio
- 3.8:1
- Final Drive Ratio
- 10.99:1
- Speed Control Included
- 130A
- Radio
- Spektrum Smart DX3 3-Channel DSMR
- Servos Included
- Spektrum S614S
WHAT'S IN THE BOX?
(1) Losi Method Ford Raptor Baja Rey 2.0 1/10 Scale 4WD RTR
(1) Spektrum DX3 Transmitter 3-Channel DSMR Radio System
(4) AA Transmitter Batteries
(1) Product Manual
3 degree rear toe blocks (installed)
0 degree rear toe blocks (included, not installed)
- (1) 2S or 3S LiPo Battery with EC5™ or IC5® connector
- (1) Compatible Battery Charger
